Ladies Classic eBike Black
Pedal Assist
Description
Specifications
Geometry
Size Guide
Assembly

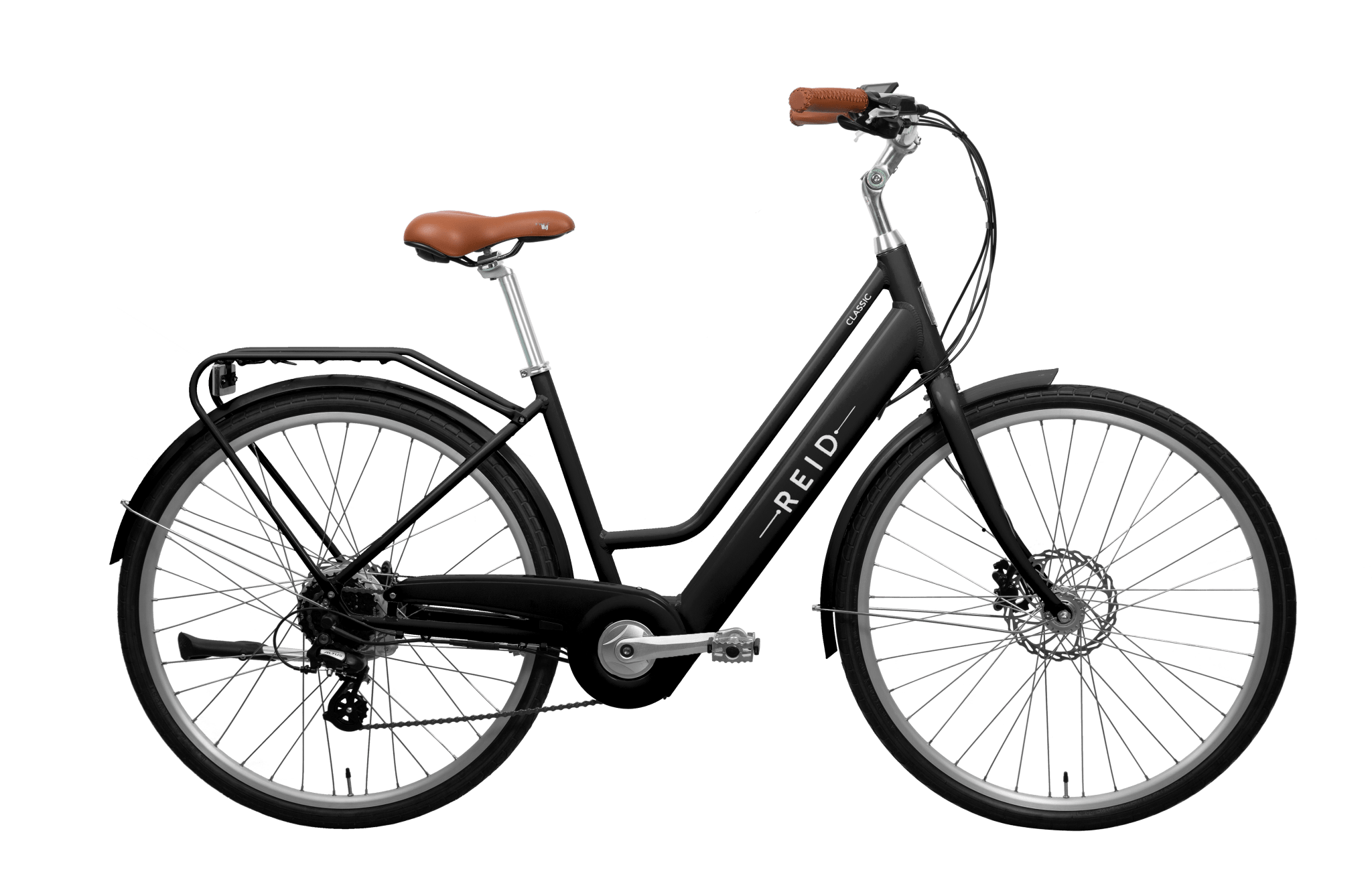

If there was ever a bike that personified effortless style, it would be the Reid Classic eBike. Vintage looks with truly modern eBike integration.
The Classic is just at home nipping to the shops or beach as it is delivering you to the restaurant or the office. All with effortless pace, no parking problems, no pollution, and no sweat. Truly the coolest way to travel. Designed with integrated headset, cables, and battery, it’s truly sleek. Drivetrain is provided by Shimano with 8 gears perfectly matched to the Bafang motors 250w output. The Classic has a 10.4ah battery meaning range is not an issue and charges are less frequent. Stopping is taken care of by powerful hydraulic disc brakes reinforcing that truly modern performance.
With a bike that looks and rides this good isn’t it time you reconsidered your car usage? The Ladies Classic eBike is available as a 25km/h or 32km/hr speeds depending on location.
Please make sure to familiarise yourself with eBike and eScooter safety information before charging or using your new Reid. You can view and download user manuals and safety instructions here.
Build
Frame | Hydroformed 6061 Aluminium Alloy |
---|---|
Fork | Hi-Ten Steel |
Handlebars | Alloy Vintage w/ backsweep 620mm wide 38mm rise 25.4 Barbore |
Stem | Alloy 1" Quill Stem |
Pedals | Alloy platform with 9/16" steel axle |
Saddle | Selle Royal sprung comfort |
Seatpost | Alloy 27.2mm x 350mm |
Rider Weight Limit | 120kg |
Internal Cabling | Included |
Front Axle | QR |
Rear Axle | Bolted |
Headset | THREAD TYPE,25.4MM,44*44MM,W/15MM |
Groupset
Bottom Bracket | Feimine FP-B902 Sealed Bearing |
---|---|
Chain | KMC Z7 |
Brakes | NUTT Hydraulic Brakes |
Brake Lever | NUTT Hydraulic Levers Alloy |
Freewheel | Shimano TZ500 7-Speed Freewheel (14-28t) |
Front Derailleur | #N/A |
Rear Deraillur | M310 Altus 8 Speed |
Wheels
Wheelset | 700c, 36H, 13G, DOUBLE WALL alloy , F/V |
---|---|
Tyres | Wanda 700 x 45c |
Front Hubs | 3/8"*36H, STEEL, NUT TYPE |
Rear Hubs | #N/A |
Wheel Size | 700c |
Extras
Kickstand | Included |
---|---|
Bell | Included |
Reflectors | Included |
Mudguards | Included |
Chain Guard | Included |
Pannier Rack | Included |
Electric
Motor | Bafang 250W rear hub |
---|---|
Display | KDS KD21C |
Battery | 36V/10AH LISHEN 21700 CELL w/ integrated battery management system |
Range | 70km |
Charger | MDA257 36V/2A |
Power | 45Nm |
Top Speed | 25km/hr |
Integrated Lights | Not included |
We reserve the right to modify product specifications and details without prior notification.
Length measurements are provided in millimeters and degrees, unless specified otherwise.
Size | Range (cm) | Range (ft & in) |
---|---|---|
Small | 151 - 160 | 4'11" - 5'3" |
Medium | 160 - 170 | 5'3" - 5'7" |
Large | 168 - 183 | 5'6" - 6'0" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Size | Age | Range (cm) | Range (ft & in) |
---|---|---|---|
12" (Balance) | 2 - 4 | 80 - 100 | 2'6" - 3'1" |
16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new Ladies Classic eBike Black. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Install Quill Stem Handlebars
Install and align quill stem handlebars securely.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Install Quick-Release Wheels
Attach and secure wheels with quick-release mechanisms.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
Bafang user guide
Tips for Bafang eBike battery and display usage.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
